BMW X3 G01 G08 iX3 G08 X4 G02 LCI LED Outer Tail Light RH 2022-2024

ACE000043 · BMW · X3 / iX3 / X4

1 / 5

Product Photos

Click image to view larger

Inquiry Product

BMW X3 G01 G08 iX3 G08 X4 G02 LCI LED Outer Tail Light RH 2022-2024

Send SKU, vehicle details, VIN/chassis number or original part photo before order confirmation.

WhatsApp Inquiry Request Quote

SKU

ACE000043

Brand

BMW

Model

X3 / iX3 / X4

Chassis / Platform

G01 / G02 / G08

Year

2022-2024

Stage

LCI / Facelift

Position

Right / RH / Outer / Rear Body Mounted / Rear Quarter Panel

Lighting Technology

LED Rear Tail Light

Lighting Version

Outer LED Tail Light Rear Body / Quarter Panel Mounted

OE Number

63219850134

Supplier

HELLA

Supplier Part Number

2SD 015.144-52

Interchange Numbers

63219850134 9850134 2SD 015.144-52 2SD01514452

Compatible Models

BMW X3 G08 LCI (China Market) BMW iX3 G08 LCI BMW X3 G01 LCI (Overseas Market) BMW X4 G02 LCI 2022-2024

Modules Included

No separate modules shown

Condition

Original Used

Notes

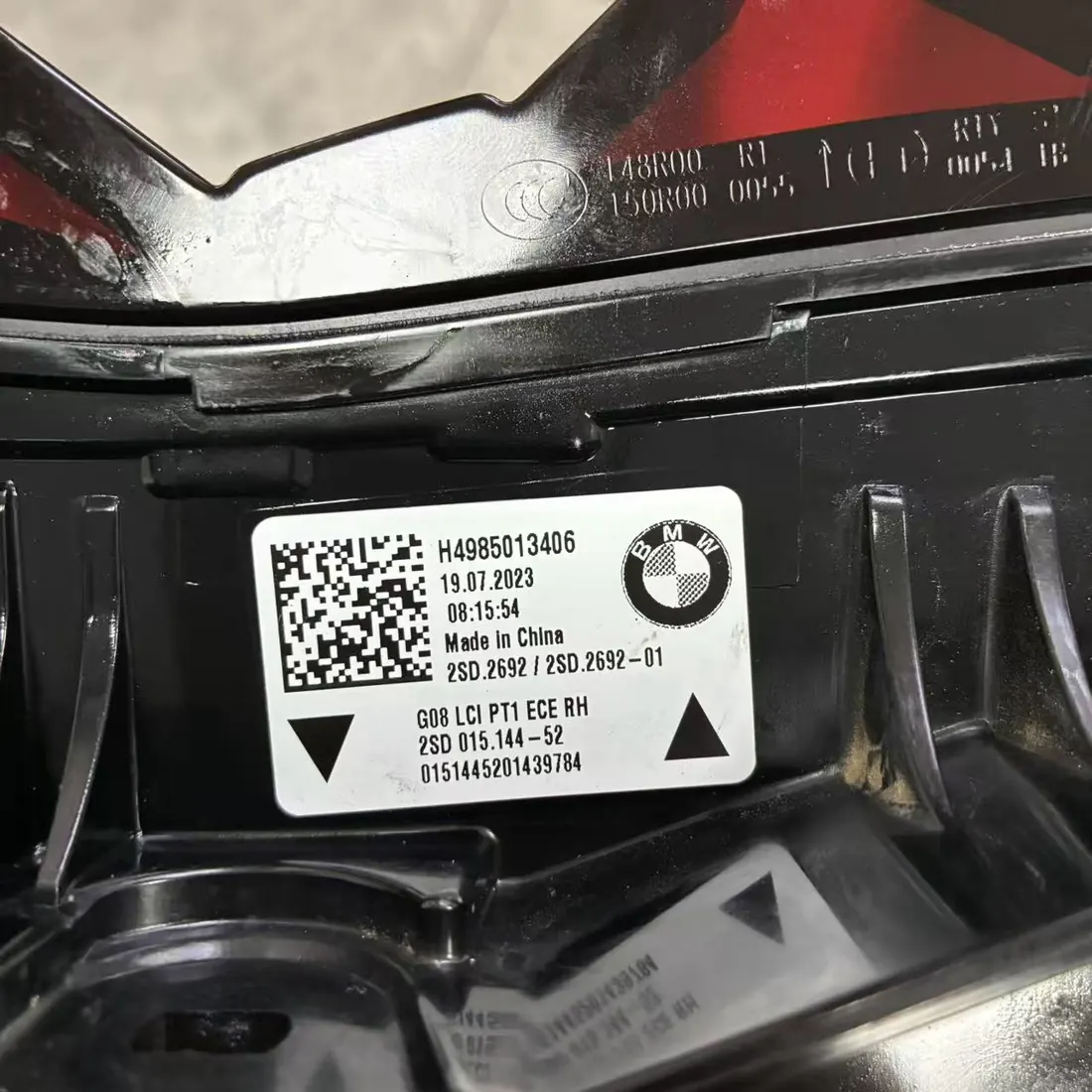

Chinese internal name: 宝马X3 G01/G08 iX3 G08 X4 G02 后期款右外LED尾灯 2022-2024 Product category: Tail Light / Rear Light Model: X3 / iX3 / X4 Chassis codes: G01 / G02 / G08 Facelift stage: LCI / Facelift Applicable years: 2022-2024 Lighting technology: LED Quantity: 1 Piece Pair or Single: Single Position: Right / RH / Outer / Rear Body Mounted / Rear Quarter Panel Interchange status: YES, only for the same side, same inner/outer installation position and same part version. Compatibility note: G08 China-market BMW X3/iX3; G01 overseas BMW X3; G02 overseas BMW X4. Verification requirement: Part number, label number, installation position, connector and VIN must be checked before purchase. Left and right lamps cannot be interchanged. Outer body-mounted and inner tailgate-mounted lamps cannot be interchanged. Pre-LCI and LCI lamps cannot be mixed. Physical label: G08 LCI PT1 ECE RH Physical trace code: H4985013406 Supplier number normalized: 2SD01514452 Supplier family code: 2SD.2692 / 2SD.2692-01 Additional trace number: 0151445201439784 Production time: 08:15:54 Market specification: ECE / China specification Product configuration: Complete outer LED tail light housing as shown.

Description

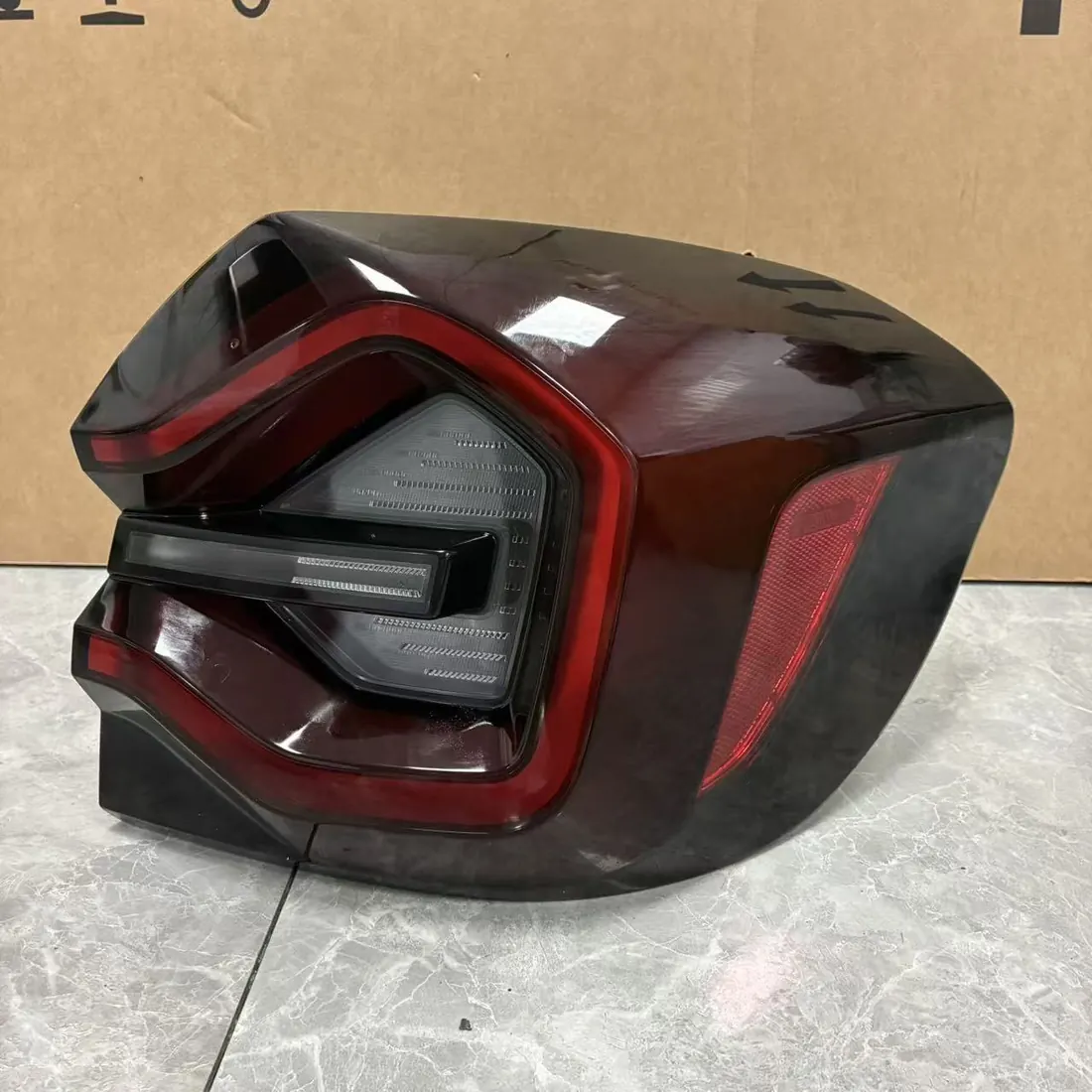

Original BMW LED outer rear tail light assembly for the facelift BMW X3, BMW iX3 and BMW X4. Compatible applications include the China-market BMW X3 G08, BMW iX3 G08, overseas BMW X3 G01 and BMW X4 G02 LCI models from 2022 to 2024. This listing is for the RIGHT OUTER tail light only. The lamp is installed on the right rear body or rear quarter-panel section. It is not the inner lamp mounted on the tailgate. Label number: H4985013406. Manufacturer number: 2SD 015.144-52. The left and right lamps are different and cannot be interchanged. The outer body-mounted lamp is also different from the inner tailgate-mounted lamp. This LCI lamp is not interchangeable with the earlier Pre-LCI version. Please compare the label number, mounting position, connector, lamp appearance and vehicle VIN before ordering. Sold as one individual lamp only, not a pair.

Important Notes

Fitment must be confirmed before order.
Please send your car model, year, VIN or part photo before purchase.
Part condition may vary. Please confirm with photos before order.
Module / control unit is not included unless stated.
Worldwide shipping available.

Product Information Notice

Product information is for reference only.
Fitment must be confirmed before order.
Please send VIN/chassis number or original part photo for checking.
Used parts may have normal signs of use.
Final availability and shipping cost will be confirmed by our team.
