Tail Lights

BMW X3 G01 G08 iX3 G08 X4 G02 LCI LED Inner Tail Light LH 2022-2024

ACE000044 · BMW · X3 / iX3 / X4

1 / 5

Product Photos

Click image to view larger

Inquiry Product

BMW X3 G01 G08 iX3 G08 X4 G02 LCI LED Inner Tail Light LH 2022-2024

Send SKU, vehicle details, VIN/chassis number or original part photo before order confirmation.

WhatsApp Inquiry Request Quote

SKU

ACE000044

Brand

BMW

Model

X3 / iX3 / X4

Chassis / Platform

G01 / G02 / G08

Year

2022-2024

Stage

LCI / Facelift

Position

Left / LH / Inner / Tailgate Mounted / Trunk Lid

Lighting Technology

LED Rear Tail Light

Lighting Version

Inner LED Tail Light Tailgate / Trunk Lid Mounted

OE Number

63219850137

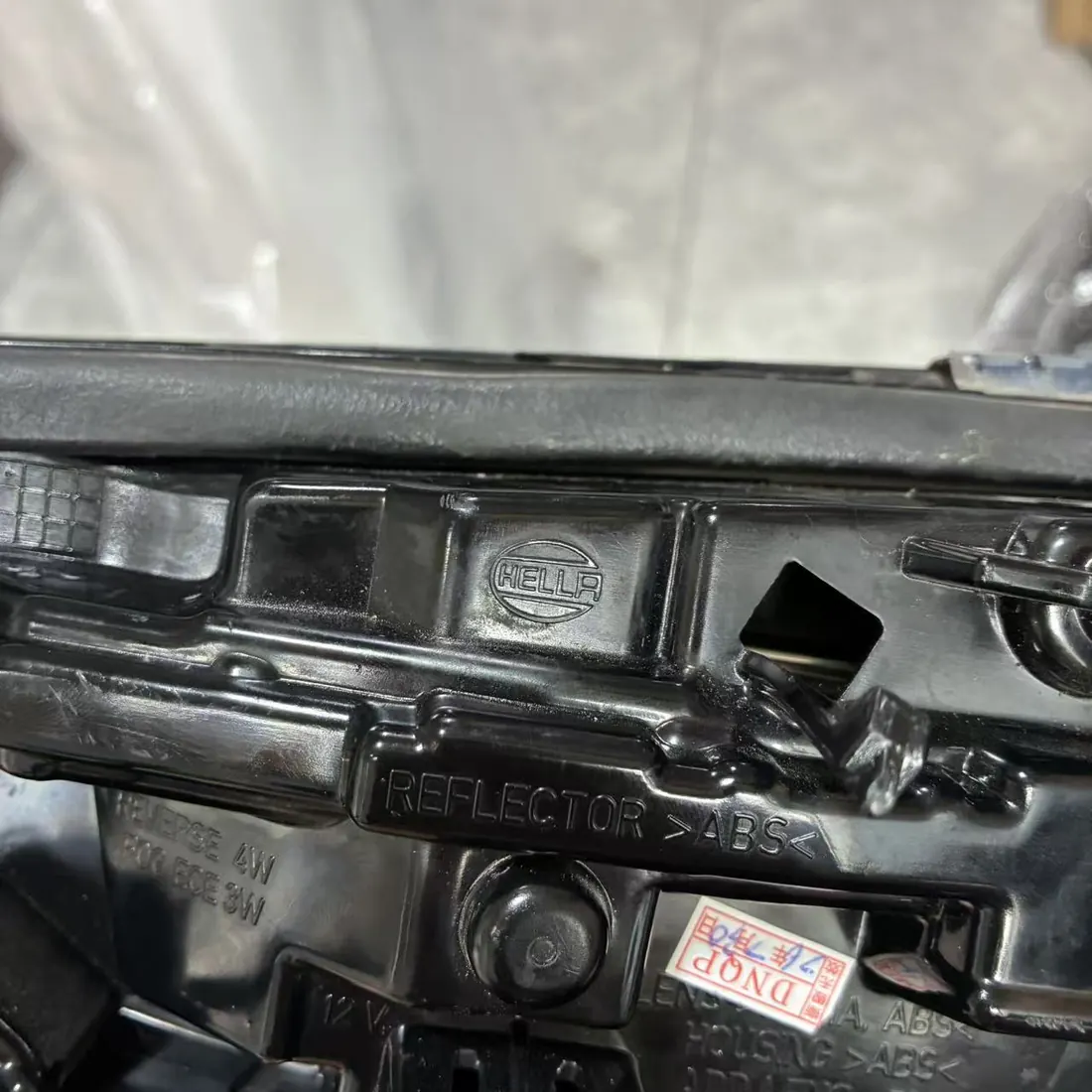

Supplier

HELLA

Supplier Part Number

2TZ 015.145-51

Interchange Numbers

63219850137 9850137 2TZ 015.145-51 2TZ01514551

Compatible Models

BMW X3 G08 LCI (China Market) BMW iX3 G08 LCI BMW X3 G01 LCI (Overseas Market) BMW X4 G02 LCI 2022-2024

Modules Included

No separate modules shown

Condition

Original Used

Notes

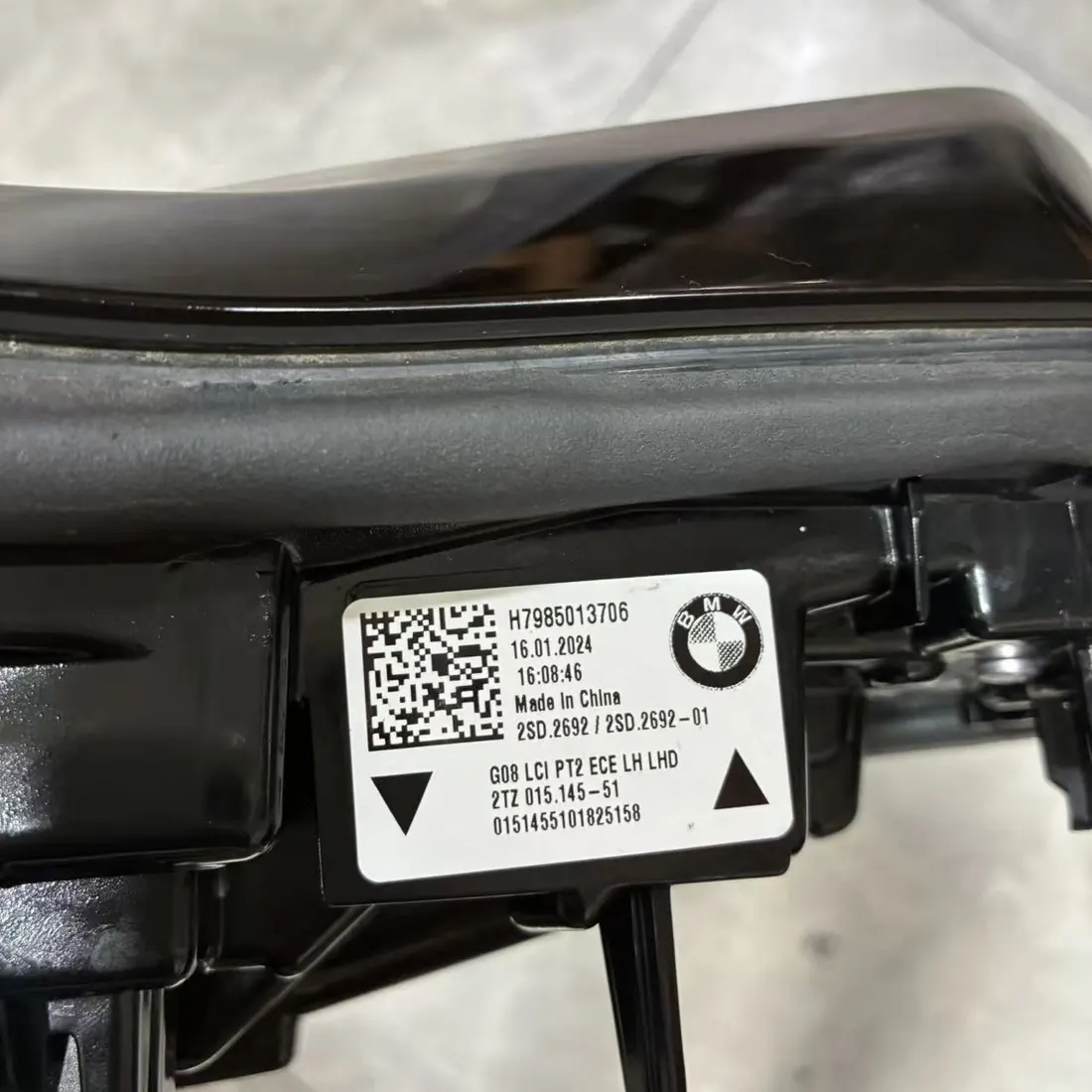

Chinese internal name: 宝马X3 G01/G08 iX3 G08 X4 G02 后期款左内LED尾灯 2022-2024 Product category: Tail Light / Rear Light Model: X3 / iX3 / X4 Chassis codes: G01 / G02 / G08 Facelift stage: LCI / Facelift Applicable years: 2022-2024 Lighting technology: LED Quantity: 1 Piece Pair or Single: Single Position: Left / LH / Inner / Tailgate Mounted / Trunk Lid Interchange status: YES, only for the same side, same inner/outer installation position and same part version. Compatibility note: G08 China-market BMW X3/iX3; G01 overseas BMW X3; G02 overseas BMW X4. Verification requirement: Part number, label number, installation position, connector and VIN must be checked before purchase. Left and right lamps cannot be interchanged. Outer body-mounted and inner tailgate-mounted lamps cannot be interchanged. Pre-LCI and LCI lamps cannot be mixed. Physical label: G08 LCI PT2 ECE LH Physical trace code: H7985013706 Supplier number normalized: 2TZ01514551 Supplier family code: 2SD.2692 / 2SD.2692-01 Additional trace number: 0151455101825158 Production time: 16:08:46 Market specification: ECE / China specification Product configuration: Complete inner LED tailgate lamp as shown.

Description

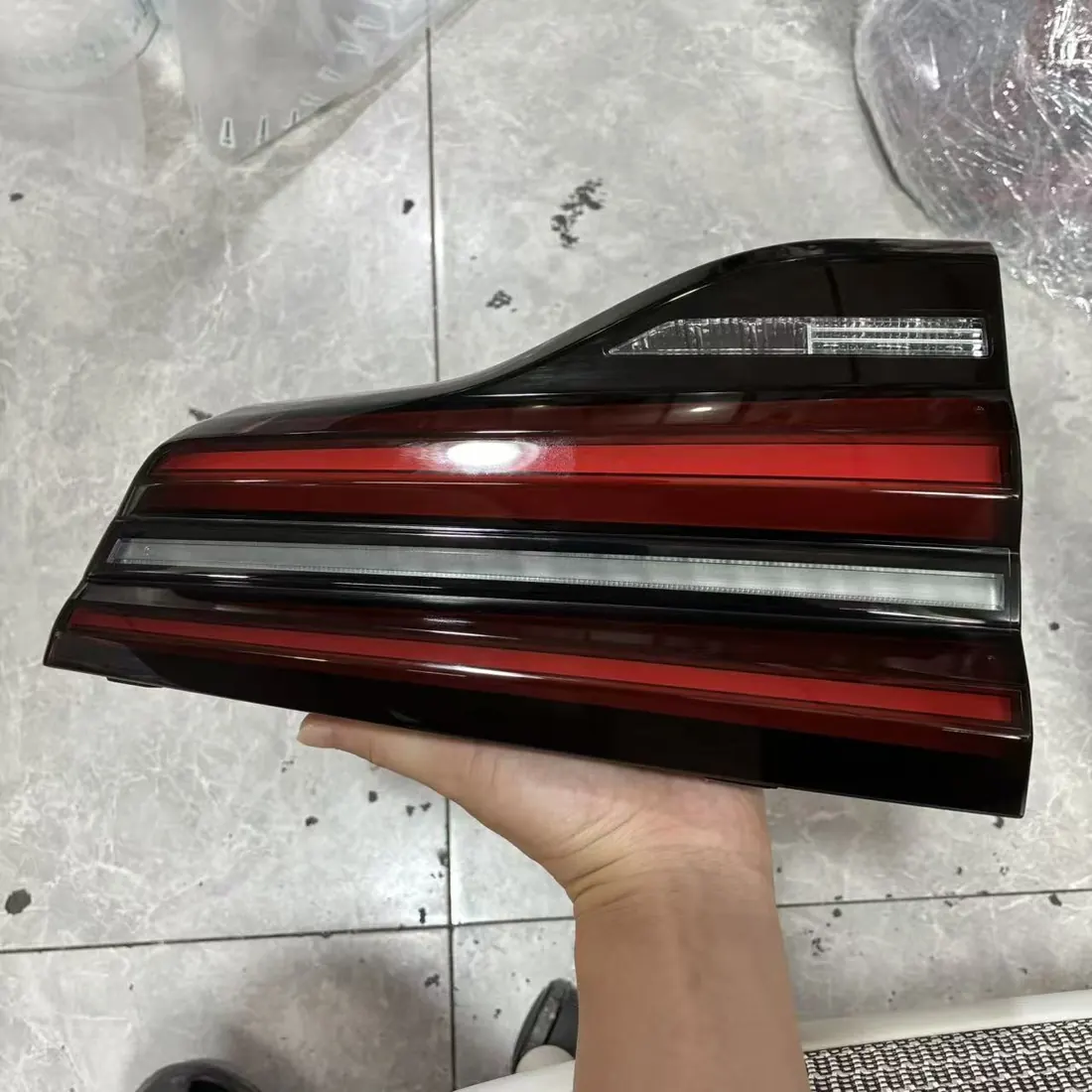

Original BMW LED inner rear tail light assembly for the facelift BMW X3, BMW iX3 and BMW X4. Compatible applications include the China-market BMW X3 G08, BMW iX3 G08, overseas BMW X3 G01 and BMW X4 G02 LCI models from 2022 to 2024. This listing is for the LEFT INNER tail light only. The lamp is installed on the left side of the rear tailgate or trunk lid. It is not the outer lamp mounted on the rear body or quarter panel. Label number: H7985013706. Manufacturer number: 2TZ 015.145-51. The left and right lamps are different and cannot be interchanged. The inner tailgate-mounted lamp is also different from the outer body-mounted lamp. This LCI lamp is not interchangeable with the earlier Pre-LCI version. Please compare the label number, mounting position, connector, lamp appearance and vehicle VIN before ordering. Sold as one individual lamp only, not a pair.

Important Notes

Fitment must be confirmed before order.
Please send your car model, year, VIN or part photo before purchase.
Part condition may vary. Please confirm with photos before order.
Module / control unit is not included unless stated.
Worldwide shipping available.

Product Information Notice

Product information is for reference only.
Fitment must be confirmed before order.
Please send VIN/chassis number or original part photo for checking.
Used parts may have normal signs of use.
Final availability and shipping cost will be confirmed by our team.
